Excavator Idler Wheel: Function, Types, and Benefits

What is an Excavator Idler Wheel?

The excavator idler wheel is an essential component of an excavator’s track system, typically installed at the front end of the track. It guides the track for smooth operation while bearing part of the track tension. It can be considered the “navigator” of the track system, maintaining the correct track path and balancing the pressure between the track and the ground, reducing localized wear.

The idler wheel works together with the drive wheel, carrier rollers, and track rollers to form a complete track system. The drive wheel provides power to move the track, carrier rollers support the machine’s weight and maintain track-to-ground pressure, and the idler wheel provides guidance and tension. A high-performance idler wheel not only extends the life of the entire track system but also improves operator control and operational efficiency.

According to manufacturer data, standard heavy-duty excavator idler wheels can bear several tons to over ten tons, with a lifespan typically ranging from 2000 to 5000 hours depending on operating conditions, load, and maintenance. Choosing the right type of idler wheel and supplier is crucial for ensuring the long-term stability of the machine.

Functions of Excavator Idler Wheels

The functions of an excavator idler wheel mainly include the following three aspects:

• Guidance and Tensioning: The primary function of the idler wheel is to guide the track and maintain proper tension. Tracks tend to shift or loosen under heavy load or rough terrain. The idler wheel, through its tensioning mechanism, ensures the track stays in the correct position with proper tension. Overly loose tracks may derail, while overly tight tracks accelerate wear and fuel consumption. Therefore, the tensioning function of the idler wheel is critical for normal excavator operation.
• Shock Absorption and Stability: The idler wheel also provides buffering and shock absorption within the track system. When excavators operate on uneven terrain, the tracks generate significant vibrations. Without the idler wheel, these vibrations transmit directly to the machine and operator, affecting control stability and accelerating wear of other components. High-quality idler wheels are usually made of steel or steel-rubber composite materials to enhance shock absorption and extend service life.
• Extending Track Life: By distributing track tension and pressure, the idler wheel effectively reduces localized wear, thereby extending the life of the track and the entire track system. Studies show that using high-quality idler wheels with proper maintenance can extend track life by 20%-30%, significantly reducing maintenance costs.

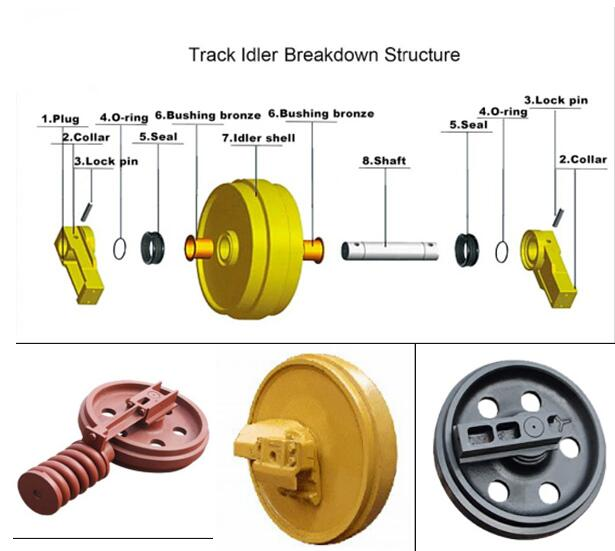

Types of Excavator Idler Wheels

Excavator idler wheels are classified into three main types based on design, material, and function:

1. Standard Idler Wheel

• Features: The most common type, made of high-strength steel, simple and durable.
• Applications: Light to medium excavators, general earthmoving, and construction tasks.
• Advantages: Moderate cost, easy maintenance, provides stable track guidance and tension.
• Environment: Flat or mildly uneven terrain with light workloads.

Standard idler wheels evenly distribute track pressure, ensuring smooth operation under normal conditions and serving as a fundamental choice for most projects.

2. Heavy-Duty Idler Assembly

• Features: Made from thicker steel or steel-cast iron composites, processed with precision heat treatment and wear-resistant technology, offering significantly enhanced load-bearing capacity.
• Applications: Large excavators, high-intensity mining, and heavy earthmoving operations.
• Advantages: High wear resistance, long service life, capable of withstanding heavy loads and high-frequency operations, reducing track and component wear.
• Environment: Complex terrain, high load conditions, long continuous operation.

Heavy-duty idler assemblies are ideal for heavy machinery, maintaining track system stability in harsh environments and improving overall operational efficiency and safety.

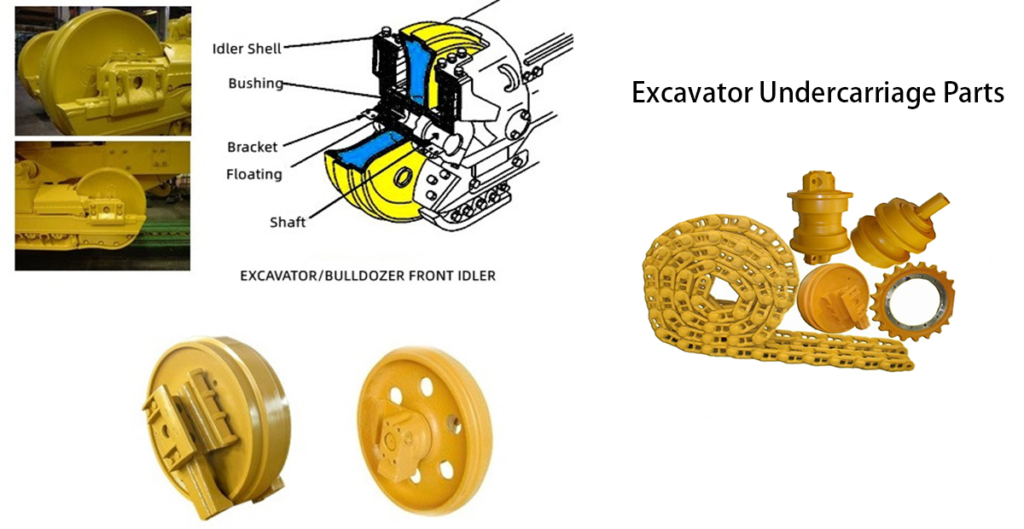

3. Front Idler / Tail Roller Variants

• Features: Designed for terrain adaptability and traction enhancement, often with suspension or floating mechanisms to adapt to uneven ground.
• Applications: Excavators operating in variable terrain, soft ground, or special construction environments.
• Advantages: Improves track-to-ground contact, enhances traction, and reduces vibrations affecting the machine and operator.
• Environment: Hills, wetlands, sandy areas, and other complex working conditions.

Understanding these three types allows users to select the most suitable idler wheel based on excavator model, operating environment, and load requirements. Professional excavator idler suppliers such as GFM can also provide expert selection advice to ensure the best match.

Benefits of High-Quality Excavator Idler Wheels

High-quality idler wheels offer multiple advantages, impacting operational efficiency, cost-effectiveness, safety, and machine stability:

• Improved Operational Efficiency: High-performance idler wheels reduce track misalignment and slack, allowing smoother excavator operation. Operators can control the machine more precisely, minimizing repeated adjustments and improving efficiency. In challenging terrain or continuous operations, high-quality idler wheels maintain stable track tension, reducing downtime for adjustments.
• Reduced Maintenance Costs: Premium idler wheels effectively distribute tension, lowering wear on tracks, carrier rollers, and drive wheels, reducing maintenance frequency and costs. Industry data indicates that excavators equipped with high-quality idler wheels can cut overall track system maintenance costs by 15%-25%. Wear-resistant materials and precise manufacturing also minimize unplanned downtime due to idler wheel damage.
• Enhanced Safety: A stable track system prevents derailments or localized damage that could cause accidents. High-quality idler wheels maintain track stability in harsh environments, providing reliable safety for operators, especially on slopes, muddy surfaces, or under heavy load conditions.
• Extended Machine Life: High-quality idler wheels evenly distribute track tension and pressure, reducing localized wear on tracks, support rollers, and drive wheels, significantly extending the track system’s service life. This also reduces replacement frequency and indirect costs. Studies show the lifespan of track systems with premium idler wheels can increase by 20%-30%.
• Enhanced Comfort and Machine Stability: High-quality idler wheels often use steel-rubber composites or specialized shock absorption treatment to reduce vibration and noise. This improves operator comfort and minimizes structural fatigue from prolonged vibration, enhancing overall machine stability and reliability.

Reasons to Choose GFM as Your Excavator Idler Supplier

GFM has been dedicated to manufacturing excavator and bulldozer undercarriage components since 2011, with 15 years of rich experience, making it a trusted excavator idler suppliers. Choosing GFM for idler wheels and other undercarriage parts offers the following advantages:

• Extensive Manufacturing Experience and Expertise: GFM specializes in the research and production of undercarriage components, including carrier rollers, sprockets, track rollers, idler wheels, drive wheels, track plates, track chains, and track assemblies, along with bolts, nuts, pins, and bushings. With years of accumulated experience and industry knowledge, GFM provides high-quality, reliable idler wheels suitable for diverse operating conditions.
• Modern Factory and Advanced Production Lines: Equipped with advanced machinery and automated production lines, GFM integrates precision casting, forging, and heat treatment processes to ensure every excavator idler wheel maintains strength and durability under heavy loads and harsh terrain. Rigorous quality testing ensures all products meet or exceed industry standards, with at least one year or 2,000 hours of quality guarantee.
• Wide Product Compatibility and Selection: GFM products are compatible with most mainstream brands, including Komatsu, Hitachi, Caterpillar, Volvo, Kobelco, Daewoo, Doosan, Hyundai, Kubota, Bobcat, Yanmar, SANY, Liugong, XCMG, Shantui, covering a wide range of models and applications. Whether standard idler wheels or custom variants, GFM ensures reliable selection.
• High Supply Capacity and Fast Delivery: With mature production lines and ample inventory, GFM can handle bulk orders and custom projects, responding quickly to client needs. Both domestic and international projects are guaranteed timely delivery, meeting urgent maintenance and operational requirements.
• Competitive Pricing and High Cost-Effectiveness: GFM offers factory-direct pricing while ensuring product quality. Large supply capacity and stable inventory allow customers to reduce procurement costs while obtaining durable and reliable idler wheels, improving overall operational efficiency and economic benefits.

The excavator idler wheel plays a critical role in the track system. Understanding its function, types, and benefits, combined with expert advice from professional excavator idler suppliers like GFM, can effectively extend track life, improve efficiency, reduce maintenance costs, and ensure safety.

Selecting high-quality idler wheels and maintaining them properly is essential for operators and managers. Whether in heavy mining operations or urban construction projects, the right idler wheel and reliable supplier support are key to keeping excavators running efficiently. Contact GFM to obtain professional excavator idler wheel products and expert selection guidance for your excavator model.
