Key Takeaways
- Maintenance Efficiency: The undercarriage system accounts for about 50% of total maintenance costs. Understanding its structure and wear mechanisms is key to controlling operating costs.
- Wear Prevention: Improper track tension (standard sag should be 25mm–40mm), mud/sand accumulation, and rough operation cause premature failure of excavator undercarriage parts.
- Process Core: As a source excavator undercarriage manufacturer, GFM uses high-strength steel with casting/forging and heat treatment to ensure durable performance under severe conditions.
- Strength Assurance: Specializing in production since 2011, GFM matches global brands like Komatsu and Caterpillar, providing a warranty of no less than 1 year or 2,000 hours.
Crawler excavators directly bear the heavy weight of the entire machine and complex ground impact forces. Industry data indicates undercarriage maintenance often accounts for 50% of total repair costs.
Understanding the core structure of excavator undercarriage parts, analyzing wear causes, and mastering maintenance tips helps reduce downtime. Choosing an experienced excavator undercarriage manufacturer ensures part precision and long-term machine reliability.

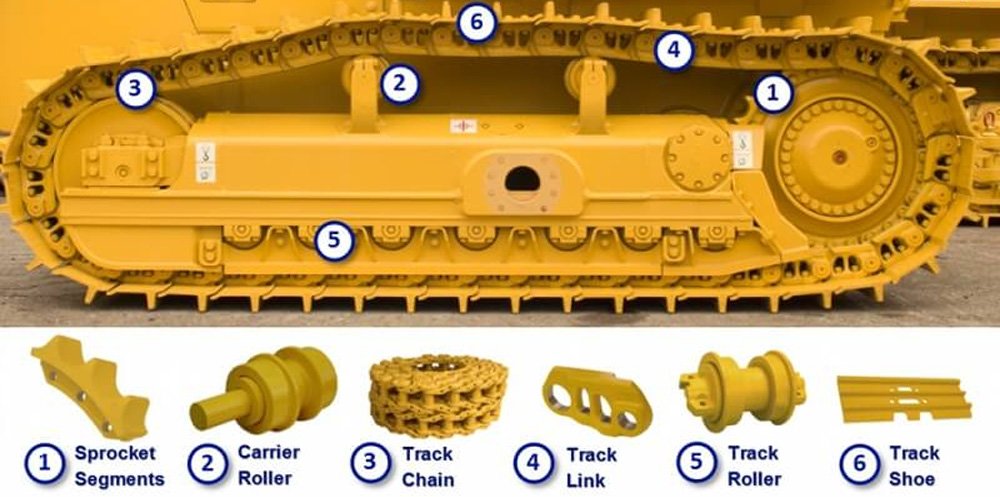

Core Structure Breakdown of Excavator Undercarriage Parts
The excavator undercarriage is a closed-loop travel and support system composed of multiple precisely fitted mechanical components:
- Track Rollers and Carrier Rollers: Track rollers support the machine’s weight and guide the chain. Carrier rollers support the upper sagging track to prevent shaking or slipping.
- Idlers and Sprockets: Idlers guide the track direction and absorb ground impact with tension springs. Sprockets transmit travel motor power directly to the chain links.
- Track Chains, Track Shoes, and Accessories: Track chains form a continuous travel loop. Track shoes provide ground traction. Buckets, pins, bushings, bolts, and nuts ensure secure assembly.
Main Components Function and Structural Comparison of Excavator Undercarriage
| Component Name | Core Function | Working Condition Challenge | Quality Component Requirements |
|---|---|---|---|
| Track Roller | Supports total machine weight and guides chain track | Bears severe impact and heavy gravity pressure | High-strength forged steel, high-sealing floating oil seal to prevent oil leakage |
| Carrier Roller | Supports upper sagging track | Upper vibration and mud/sand friction | Premium bimetallic bushing, compact structure to prevent mud/sand ingress |
| Idler | Guides chain track direction and works with spring buffering | Direct front collision and tension pull force | High structural impact strength, precise guide groove dimensions |
| Sprocket | Transmits motor power to drive the track | High-frequency tooth extrusion and abrasive wear | High wear-resistant steel, gear teeth enhanced by precise heat treatment |
| Track Chain & Track Shoe | Transmits traction force and contacts the ground | Bending friction, stretching, and ground abrasion | High pitch precision, good tensile strength and fracture-resistant toughness |
💡 Frequently Asked Questions
Q: What core components make up excavator undercarriage parts?
A: Excavator undercarriage parts mainly include 6 core travel components: track rollers, carrier rollers, idlers, sprockets, track chains, track shoes, and connecting accessories like pins and bolts.

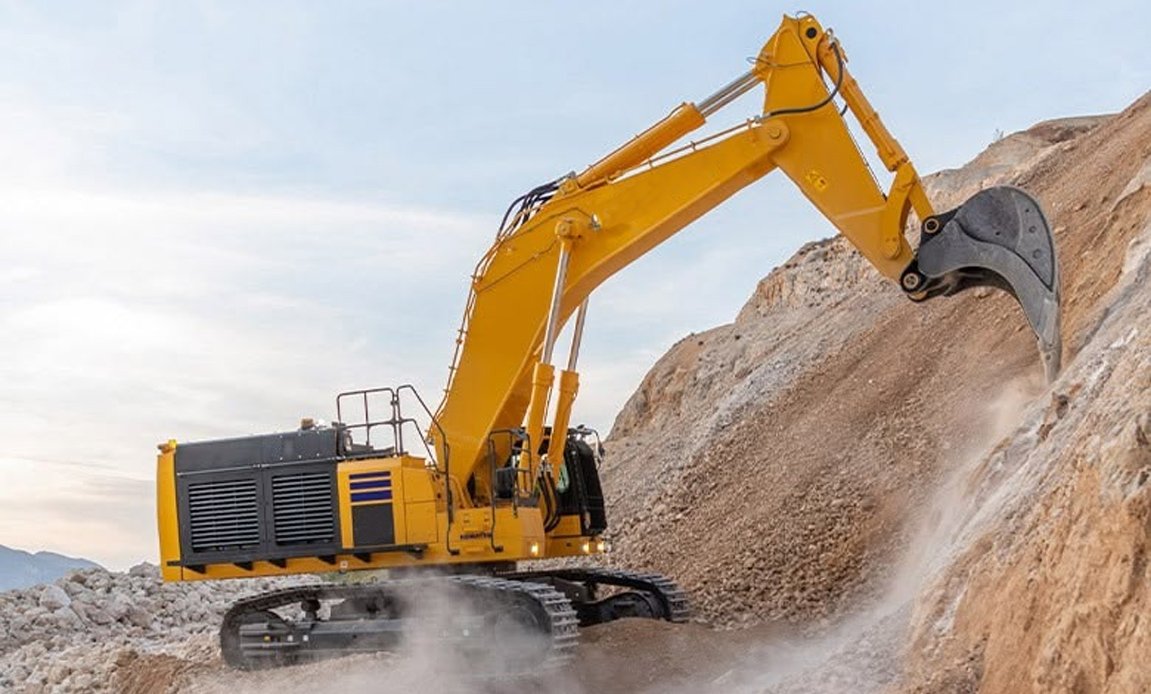

Common Causes of Abnormal Wear on Excavator Undercarriage Parts
Undercarriage components inevitably wear over time, but abnormal early wear is usually caused by environment, improper operation, and lack of maintenance.
1. Main Types of Wear
Pin and bushing friction during chain bending causes pitch extension and track looseness. Mismatched rollers or sloped operation lead to single-sided flange wear. Extended track pitch prevents sprockets from engaging properly, causing severe tooth wear.
2. Working Environment and Mud/Sand Abrasive Impact
In gravel, quarry, or clay sites, mud and sand squeeze between track chains and rollers. If not cleaned promptly, these hard particles act like grinding wheels, greatly accelerating component surface abrasion.
3. Operator Habits and Improper Track Tension
Overly tight tracks surge contact stress between pins and bushings, increasing motor load. Overly loose tracks bounce violently, causing derailment and impacting idlers. High-speed turning and forced rotation on rocks also bring severe impact loads.
💡 Frequently Asked Questions
Q: What are the main causes of abnormal wear on excavator track chains and rollers?
A: Primary causes include improper track tension, uncleaned mud/gravel accumulation causing abrasive wear, rough turning on rocks, and using low-quality components.

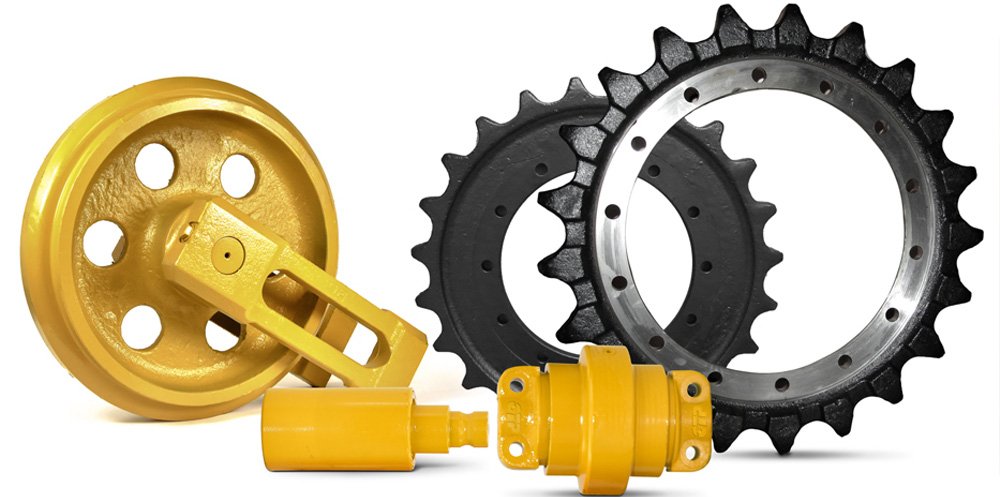

Maintenance Tips to Extend Undercarriage Component Service Life
Implementing standardized daily maintenance and preventive care significantly reduces downtime losses and extends overall undercarriage service life.
1. Regular Inspection and Track Tension Adjustment
Park the excavator on flat ground and measure track sag between carrier rollers and idlers. Keep the sag at 25mm–40mm according to standard guidelines, and adjust tension by injecting grease into the tensioning cylinder.
2. Thorough Cleaning and Undercarriage Debris Removal
At the end of each shift or after working in clay/gravel sites, clean the undercarriage promptly. Remove mud and stones from gaps between rollers, idlers, and chains to prevent hard caking.
3. Lubrication, Seal Inspection, and Periodic Turning
Apply high-quality grease to pins and bushings regularly, and inspect floating oil seals to prevent dry bearing wear. When chain pitch extension reaches its limit, turn pins and bushings 180° to double their service life.
💡 Frequently Asked Questions
Q: How to properly measure and adjust excavator track tension?
A: Measure track sag between the idler and carrier roller to maintain 25mm–40mm. Inject grease into the valve if too loose, or loosen the plug to release grease if too tight.

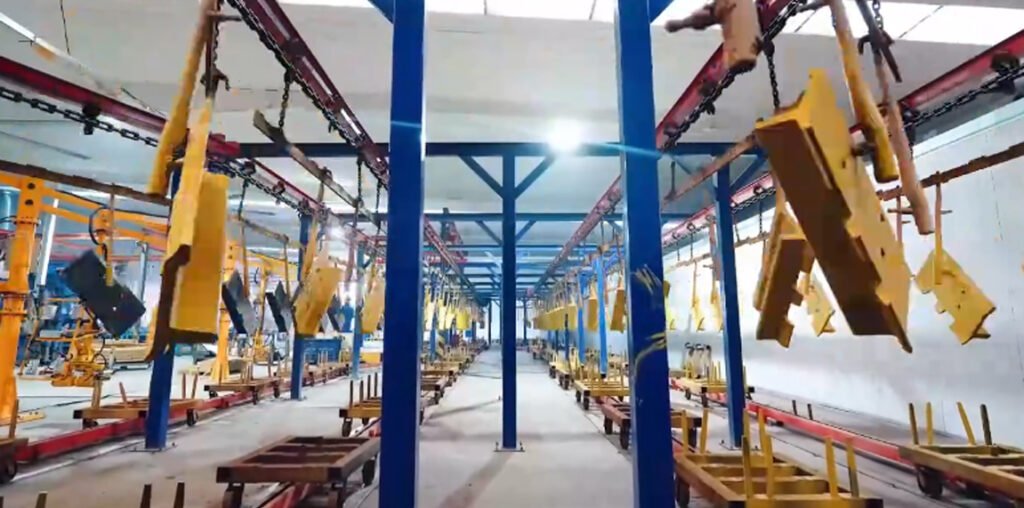

Professional Advice from Excavator Undercarriage Manufacturer
As a professional excavator undercarriage manufacturer, combining long-term production and service practice, we provide technical advice for engineering buyers:
1. Selecting High-Strength Steel and Advanced Heat Treatment
Component wear resistance depends on base materials and processing. Selecting premium high-strength steel with advanced casting/forging and comprehensive heat treatment ensures optimal strength, toughness, and long durability under severe conditions.
2. Accurately Matching Component Specifications to Working Conditions
Match configurations to environments: wide track shoes reduce ground pressure in soft soil or wetlands. Mining and rocky conditions require thickened track shoes equipped with track guards to prevent gravel jamming.
3. Establishing Standardized Wear Records and Early Warning Mechanisms
Equipment managers should maintain a wear ledger, using tools to measure track shoe thickness, roller flange wear, and chain pitch regularly. Tracking wear rates allows advance procurement and avoids sudden downtime.
💡 Frequently Asked Questions
Q: How to ensure compatibility with original equipment when purchasing third-party replacement undercarriage parts?
A: Provide the manufacturer with the equipment’s OEM number or precise machine model. A source factory matches pitch, hole spacing, and bolt specs for 100% seamless replacement.
Four Advantages of Choosing GFM Source Factory
When selecting a reliable excavator undercarriage manufacturer, factory experience, equipment strength, and quality assurance are essential for smooth project execution. GFM provides high-quality parts and custom services globally.
1. 15 Years of Deep Industry Experience and Rich Product Line
Since 2011, GFM has specialized in R&D and production of excavator and bulldozer parts. Our line covers track rollers, carrier rollers, idlers, sprockets, track shoes, track chains, buckets, pins, bushings, bolts, and nuts for one-stop procurement.
2. Advanced Equipment and Strict Quality Inspection
The GFM factory utilizes advanced machining and high-precision inspection equipment. Every component undergoes strict quality control from raw materials to finished products to meet or exceed industry standards.
3. Broad Brand Compatibility and Mass/Customized Delivery Capabilities
Our components fit mainstream brands like Komatsu, Hitachi, Caterpillar, Volvo, Kobelco, Doosan, Hyundai, Kubota, Bobcat, Yanmar, Sany, Liugong, XCMG, and Shantui. GFM handles mass orders and OEM/ODM projects with timely delivery.
4. Quality Commitment of Up to One Year or 2,000 Hours
Confidence in quality stems from solid craftsmanship. GFM commits to providing a clear warranty period of no less than 1 year or 2,000 hours for all excavator undercarriage parts, completely eliminating buyer concerns.
💡 Frequently Asked Questions
Q: Does GFM factory support custom excavator undercarriage parts with special specifications or in large batches?
A: Yes, GFM supports large orders and custom projects. Customers only need to provide OEM numbers, drawings, or samples, backed by a 1-year or 2,000-hour warranty.
| Get a quick free quote | Email: henry@gfmparts.com | Whatsapp: +86 17705953659 |
Mastering structural features, understanding wear causes, and applying maintenance tips are core paths to ensuring safe equipment operation and reducing costs. Cooperating with an experienced source manufacturer like GFM guarantees durable, precisely matched components.
If you are looking for cost-effective excavator undercarriage parts, bulk procurement, or custom development services, contact us today! Inquire now to get detailed specification sheets, accurate quotes, or request a free sample!
