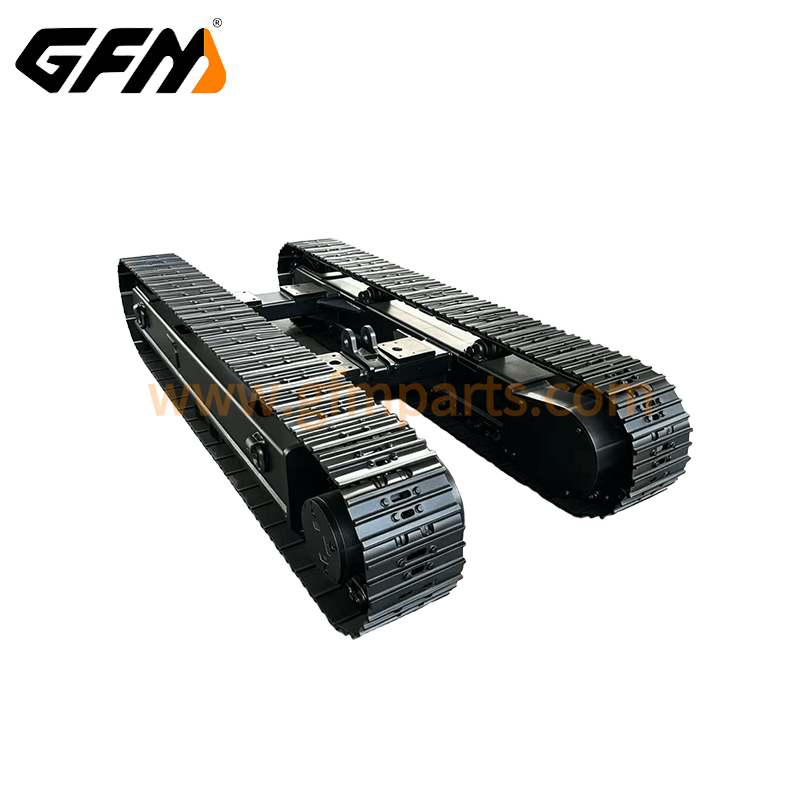

Wholesale Excavator Track Frame Manufacturer

A heavy-duty track frame serves as the foundational structural skeleton of crawler machinery. It directly supports operational payloads and continuously absorbs dynamic impact loads under demanding job site conditions. Engine physics and structural stability depend entirely on high-grade undercarriage chassis design. GFM manufactures high-strength track frame structures engineered specifically for severe mining, excavation, and heavy-duty earthmoving applications.

• High-Strength Steel Construction: Formed using premium alloy steel plates, our structural welding ensures maximum torsional resistance and superior structural rigidity under heavy loads.

• Precision CNC Machining: Critical bearing mounts, alignment points, and roller seating surfaces are processed on multi-axis CNC machines with tight tolerances within ±0.05mm.

• Advanced Heat Treatment: Integral thermal processing enhances core toughness while delivering surface hardness up to HRC 52-58, extending wear life in abrasive environments.

• Comprehensive Component Integration: Precision-engineered to house complete track groups, including track rollers, carrier rollers, idlers, sprockets, track shoes, and tensioning devices.

Each assembly integrates precision-machined mounting points, reinforced side frames, and durable cross beams. This structural integrity guarantees optimal weight distribution and prolongs operational lifespans under severe fatigue stress. Our structural assemblies accommodate direct aftermarket replacement and tailored custom specifications with full dimensional compatibility across leading global brands including Caterpillar, Komatsu, Hitachi, Volvo, Kobelco, Sany, XCMG, and Doosan.

Product Description

• Technique: Forging
• Raw Material: 35MnBH/40Mn2
• MOQ: 1 PC
• Payment Method: T/T
• Brand: GFM
• Condition: New
• Color: Yellow, Black or Customized
• Lead Time: 30 days
• Warranty: 1 Year
• Service: OEM or ODM
• Place of Origin: Fujian, China
• Application: Excavator
• Packing: Standard Export Wooden Pallet

Features

• High Durability– Built with premium alloy steel to withstand heavy use.
• Perfect Fit– Precision-crafted for seamless compatibility with major excavator brands.
• Enhanced Strength– Heat-treated for superior hardness and wear resistance.
• Corrosion Resistant– Special coating protects against rust in tough conditions.
• Smooth Operation– Low friction design ensures quiet and efficient performance.
• Quick Installation– Easy to assemble, saving time and reducing downtime.

Specifications

Product Models

Undercarriage components manufactured by GFM feature exceptionally high universal compatibility, covering the vast majority of mainstream excavator and bulldozer brands on the market. Whether for Japanese, American, or domestic machinery brands, we provide OEM-grade replacement parts.

Our undercarriage product line and mainstream compatible brands include:

• Main Undercarriage Parts: Track rollers, carrier rollers, idlers, sprockets, track shoes, track chains, and Track assembly.

• Mainstream Compatible Brands: Komatsu, Hitachi, Caterpillar, Volvo, Kobelco, Daewoo, Doosan, Hyundai, Kubota, Bobcat, Yanmar, Sany, LiuGong, XCMG, Shantui, and more.

Notably, for large excavator components, we have optimized our processes for high-end, large-tonnage accessories such as the Hyundai R450 track adjuster assy. The matching track adjuster cylinders and spring assemblies produced by GFM offer superior sealing performance, perfectly adapting to various extreme high-pressure environments.

Production Process

Packaging and Shipping

Factory Advantages

Established in 2011, GFM operates as a trusted manufacturer specializing in heavy machinery undercarriage components and custom excavator track frame units. Over 15 years of production experience enables us to deliver reliable replacement parts and tailored track frame solutions to global distributors and heavy equipment manufacturers. GFM facilities house automated forging lines, advanced casting equipment, multi-axis machining centers, and automated continuous heat treatment furnaces.

• Full-Spectrum Undercarriage Lineup: Manufactures complete track assemblies, track rollers, top rollers, front idlers, drive sprockets, track shoes, track chains, buckets, bucket pins, bolts, nuts, shafts, and bushings.

• Strict Quality Control Standards: Employs non-destructive Ultrasonic Testing (UT), Magnetic Particle Inspection (MPI), and Coordinate Measuring Machines (CMM) to guarantee a 99.8% pass rate.

• Scalable Production Capacity: Advanced production lines support large-scale direct wholesale orders, delivering a monthly capacity exceeding 5,000 units for global export.

• Guaranteed Product Protection: Backed by a standard warranty covering 1 year or 2,000 operational hours, ensuring long-term field reliability.

We manage complete manufacturing workflows internally to ensure strict quality control and predictable lead times for high-volume orders. Every batch undergoes multi-stage metallurgical and dimensional inspections before shipment. This rigid focus on operational consistency makes GFM a dependable long-term partner for custom manufacturing projects and global aftermarket distribution.

Partner with GFM to optimize your equipment reliability and streamline your undercarriage supply chain. Contact our engineering team today to submit your technical specifications, request a competitive quote, or obtain free product samples.
